Series: CL - Lead Wires & Quick Connect
Part Number: CL06ES38-X-HXN
Description: Class 2 Transformer - Inherently Energy Limited, 6VA, Primary: 230V, Secondary: 10V
Standard Lead Time: 4 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 6VA, |
| Status | Active, |
| Primary Voltage | 230V, |
| Secondary Voltage | 10, |
| Size/Dimension(L x W x H) | 256 x 1.13 x 1.39 Inch, |
| Weight (lbs) | 0.70 lb, |
| UL Recognized | UL File E49606, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4035, |
Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||
|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | MC | ML | D | Weight (lbs) |
| 6VA | CL06ES38-X-HXN | 1.63 | 1.13 | 1.385 | 2.00 | 2.56 | 0.203 x 0.375 | 0.70 |

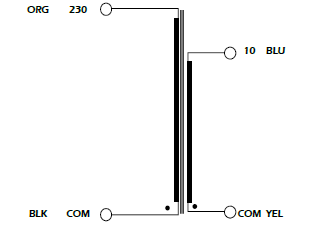

Schematics
