Series: CL - Lead Wires & Quick Connect
Part Number: CL60H36-X-VXF
Description: Class 2 Transformer - Non-Inherently Energy Limited, 60 VA, Primary: 120/208/240/277V, Secondary: 24V
Standard Lead Time: 4 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 60VA, |
| Status | Active, |
| Primary Voltage | 120/208/240/277V, |
| Secondary Voltage | 24V, |
| Size/Dimension(L x W x H) | 4.002 x 2.500 x 3.06 Inch, |
| Weight (lbs) | 2.10 lb, |
| UL Recognized | UL File E49606, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4065, |
Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||
|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | H | W | MC | ML | D | Weight (lbs) |
| 60VA | CL60H36-X-VXF | 2.500 | 3.060 | 2.500 | 3.125 | 3.560 | 0.188 | 2.10 |

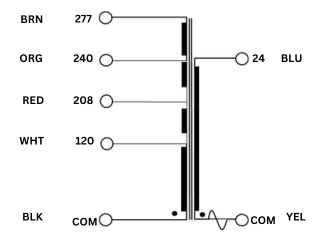

Schematics
