Series GP: Group Q, Standard
Part Number: GP0300-Q00
Description: Industrial Control Transformers, 300VA, Primary: 240/480V, Secondary: 25, 120V
Standard Lead Time: 4 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 300VA, |
| Part Status | Active, |
| Primary Voltage | 240/480V, |
| Secondary Voltage | 25, 120V, |
| Mounting Type | Panel Mount, |
| Termination Style | Finger Safe, |
| Size/Dimension(L x W x H) | 5.25 x 4.30 x 5.06 Inch, |
| Weight (lbs) | 13.60, |
| UL Listed | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4065, |
Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | ML | MW | PW | Mtg. Slot (4 PLCS) | Weight (lbs) |
| 300VA | GP0300-Q00 | 5.25 | 4.30 | 5.06 | 4.38 | 3.20 | 4.01 | 0.437 x 0.203 | 13.60 |

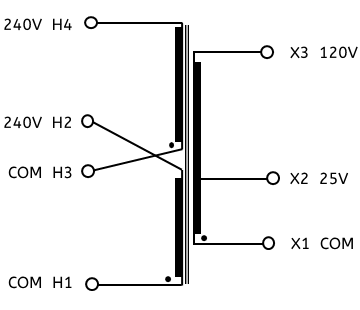

Schematics
