Series: Admiral Class (IL), Chassis Mount
Part Number: IL043-1-024
Description: International Series Chassis Mount - Lead Wires, 43VA, Primary : 115V, Secondary Series: 24VCT @ 1.8A, Secondary Parallel: 12V @ 3.6A
Standard Lead Time: 4 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 43VA, |
| Status | Active, |
| Primary Voltage | 115V, |
| Secondary Series | 24VCT @ 1.8A, |
| Secondary Parallel | 12V @ 3.6A, |
| Size/Dimension(L x W x H) | 2.26 x 2.13 x 2.68 Inch, |
| Weight (lbs) | 1.60 , |
| UL Recognized | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4065, |
Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||
|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | Mounting | MC | WC | Weight (lbs) |
| 43VA | IL043-1-024 | 2.26 | 2.13 | 2.68 | Channel | 2.81 | - | 1.60 |

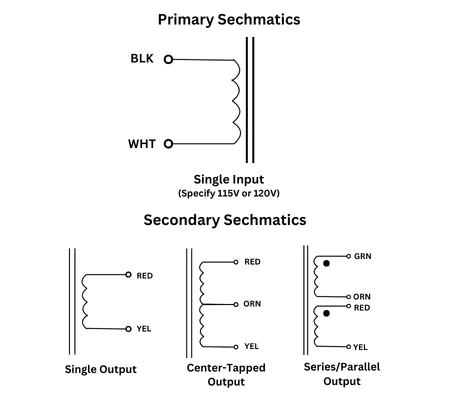

Schematics
