Series: P24H, 6Pins
Part Number: P24H-06-24
Description: Isolation Transformers - Printed Circuit Mount, 6.0VA, Primary: 24V, Secondary Series: 24VCT @ 250mA, Secondary Parallel: 12V @ 0.500A
Standard Lead Time: 4 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 6.0VA, |
| Status | Active, |
| Primary Voltage | 24V, |
| Secondary Voltage | 24VCT @ 250mA, |
| Size/Dimension(L x W x H) | 12V @ 0.500A, |
| Weight (lbs) | 1.63 x 1.31 x 1.29 Inch, |
| UL Recognized | 0.44, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4035, |

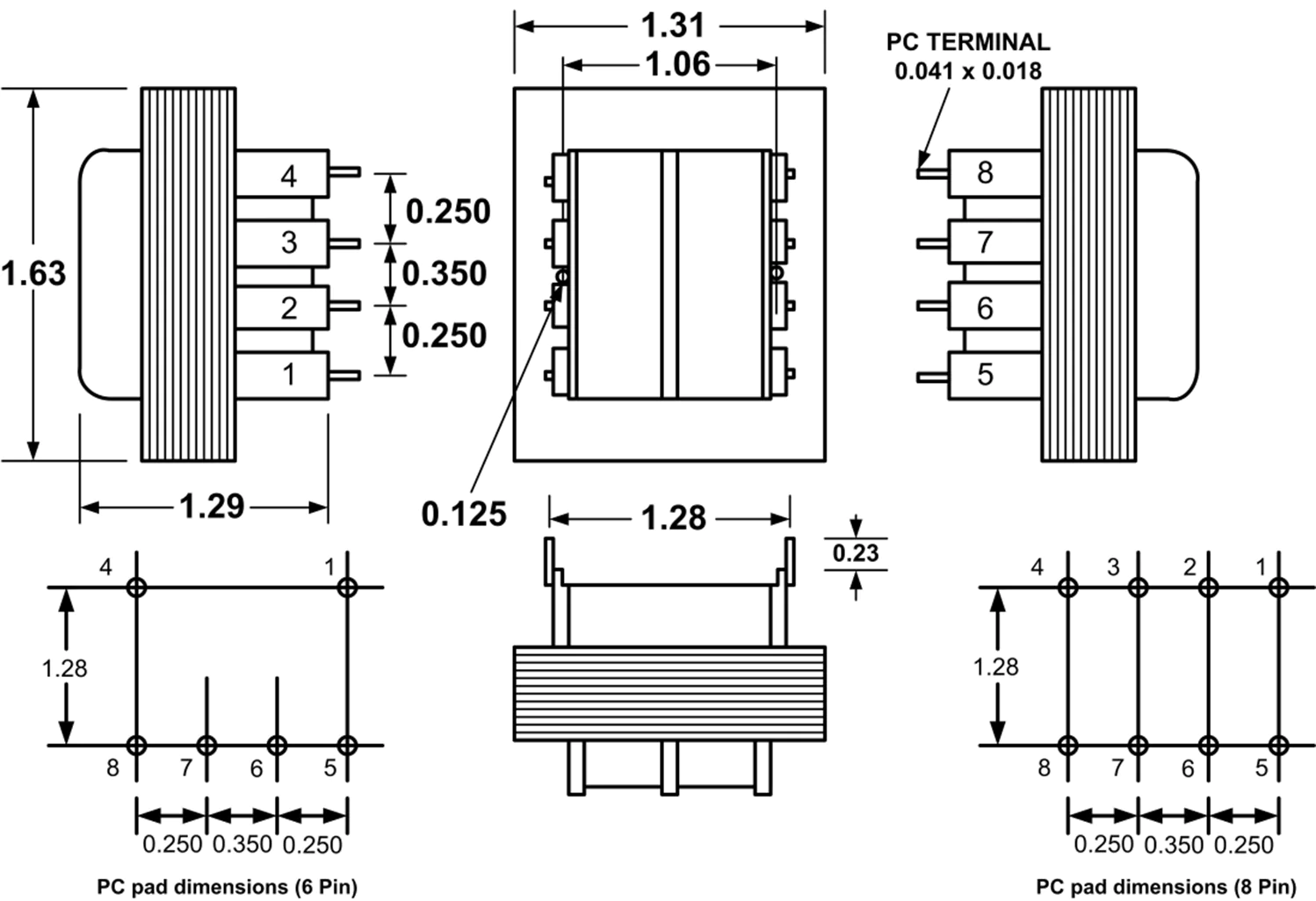

Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | ML | A | B | C | D (dia.) | Weight (lbs) |
| 6.0VA | P24H-06-24 | 1.63 | 1.31 | 1.29 | 1.06 | 0.250 | 0.350 | 1.28 | 0.125 | 0.44 |

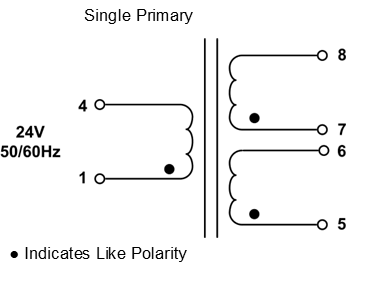

Schematics
