Series: P24L, Lead Wires
Part Number: P24L-30-24
Description: Isolation Transformers - Chassis Mount, 30VA, Primary: 24V, Secondary: 24VCT @ 1.25A
Standard Lead Time: 4 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 30VA, |
| Status | Active, |
| Primary Voltage | 24V, |
| Secondary Voltage | 24VCT @ 1.25A, |
| Size/Dimension(L x W x H) | 3.250 x 2.00 x 1.94 Inch, |
| Weight (lbs) | 1.10, |
| UL Recognized | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4035, |

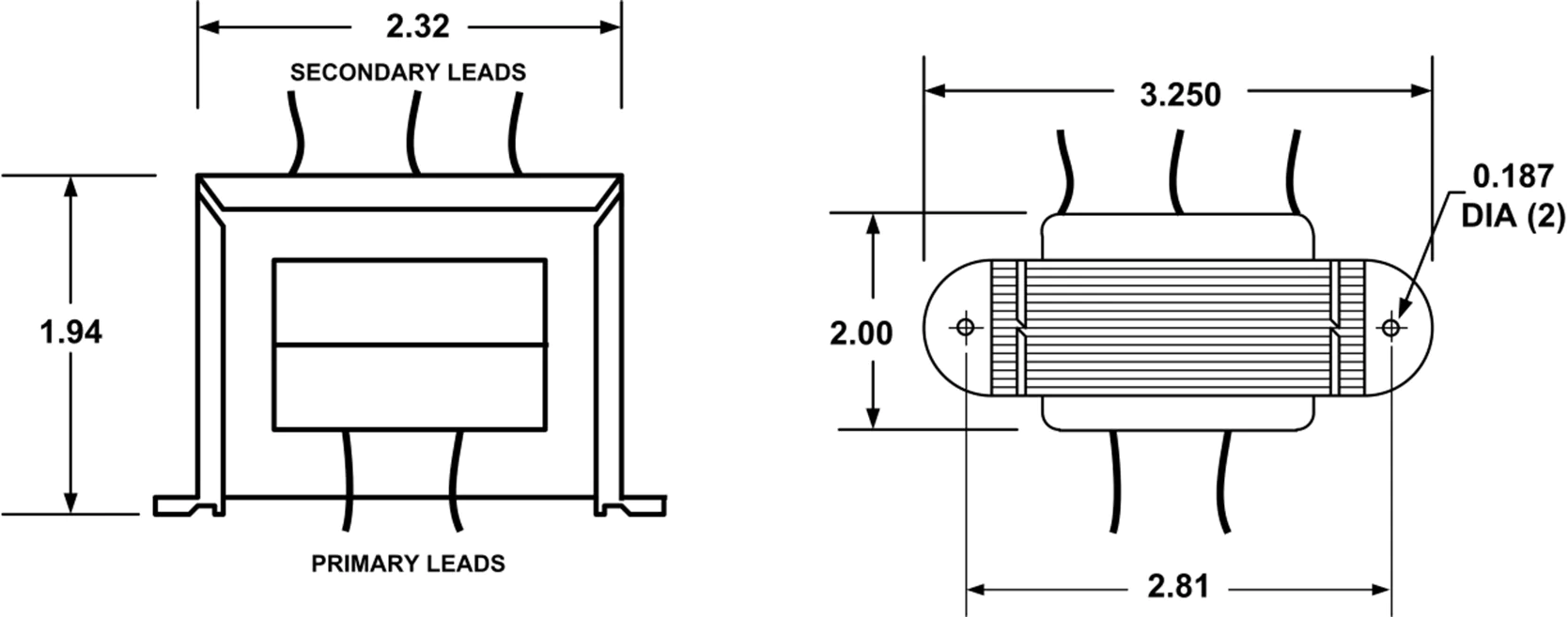

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||
|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | A | ML | Weight (lbs) |
| 30VA | P24L-30-24 | 3.250 | 2.00 | 1.94 | 2.32 | 2.81 | 1.10 |
Schematics
