Series: P24T, Quick Connect
Part Number: P24T-06-24
Description: Isolation Transformers - Chassis Mount, 6.0VA, Primary: 24V, Secondary: 24VCT @ 250mA
Standard Lead Time: 4 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 6.0VA, |
| Status | Active, |
| Primary Voltage | 24V, |
| Secondary Voltage | 24VCT @ 250mA, |
| Size/Dimension(L x W x H) | 2.375 x 1.30 x 1.38 Inch, |
| Weight (lbs) | 0.44, |
| UL Recognized | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4035, |

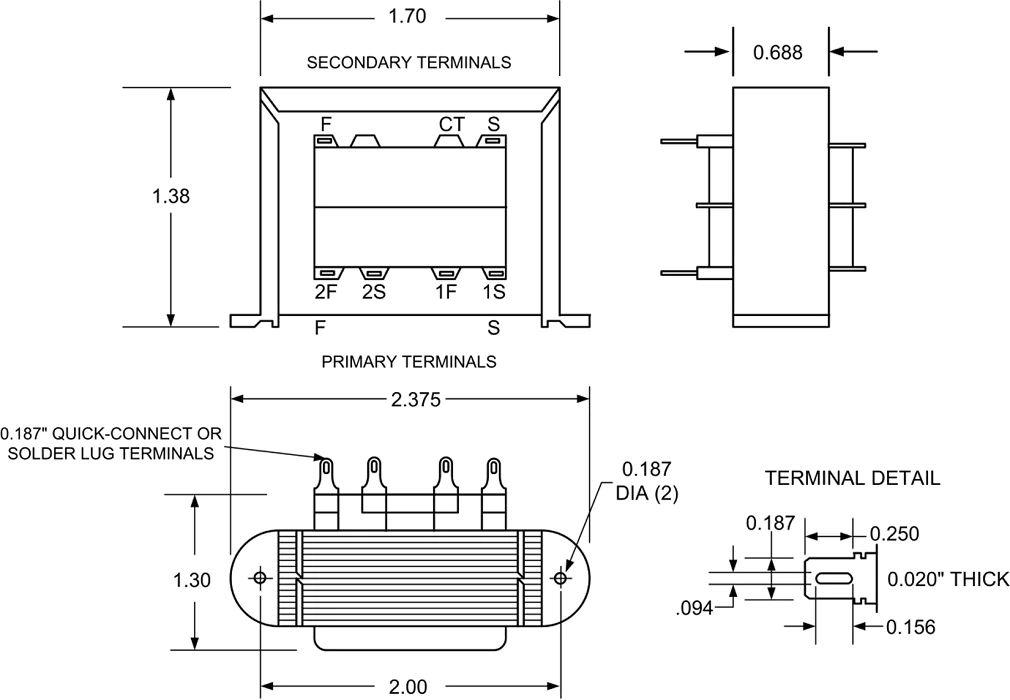

Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||
|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | A | B | ML | Weight (lbs) |
| 6.0VA | P24T-06-24 | 2.375 | 1.30 | 1.38 | 1.70 | 0.688 | 2.00 | 0.44 |

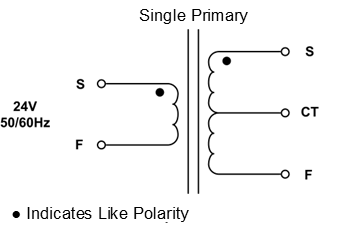

Schematics
