Series: P24T, Quick Connect
Part Number: P24T-100-24
Description: Isolation Transformers - Chassis Mount, 100VA, Primary: 24V, Secondary: 24VCT @ 4.17A
Standard Lead Time: 4 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 100VA, |
| Status | Active, |
| Primary Voltage | 24V, |
| Secondary Voltage | 24VCT @ 4.17A, |
| Size/Dimension(L x W x H) | 4.031 x 2.25 x 2.56 Inch, |
| Weight (lbs) | 2.75, |
| UL Recognized | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4065, |

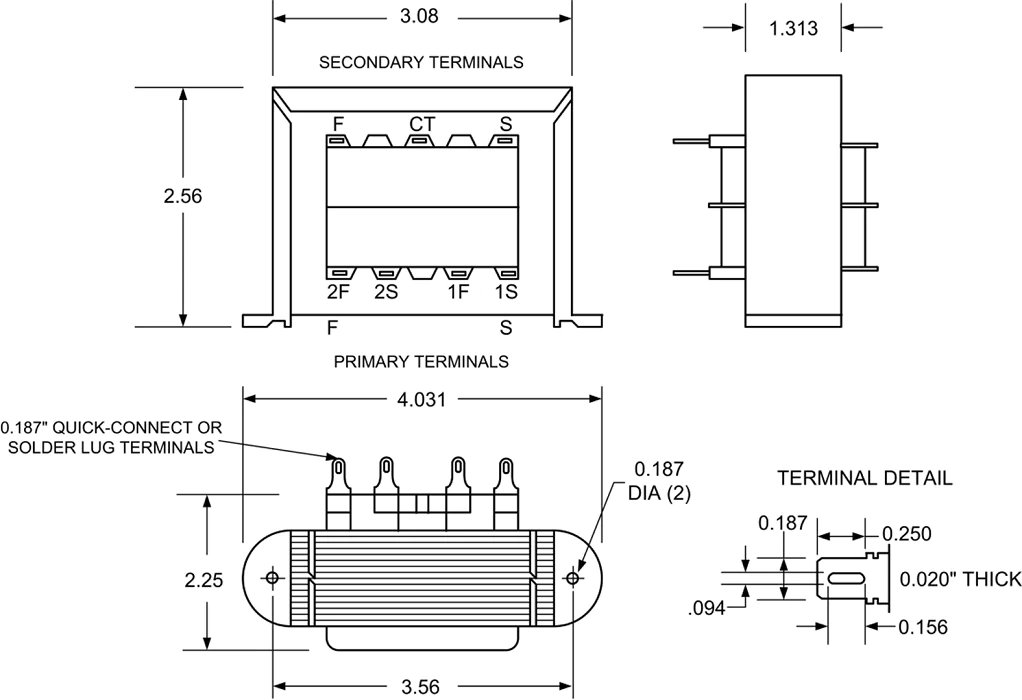

Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||
|---|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | A | B | ML | Weight (lbs) |
| 100VA | P24T-100-24 | 4.061 | 2.25 | 2.56 | 3.08 | 1.313 | 3.56 | 2.75 |
Schematics
