Series : PSL & PDL, Econoline
Part Number: PSL-24-10
Description: Chassis Mount - Lead Wires, 2.4VA, Primary: 115V, Secondary: 10VCT @ 0.240A
Standard Lead Time: 4 Weeks
Datasheet: View Datasheet
View 3D ModelSpecifications:
| Type- | Description, |
|---|---|
| VA Rating | 2.4VA, |
| Status | Active, |
| Primary Voltage | 115V, |
| Secondary Voltage | 10VCT @ 0.240A, |
| Size/Dimension(L x W x H) | 2.063 x 1.40 x 1.19 Inch, |
| Weight (lbs) | 0.25, |
| UL Recognized | UL File E47299, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4035, |

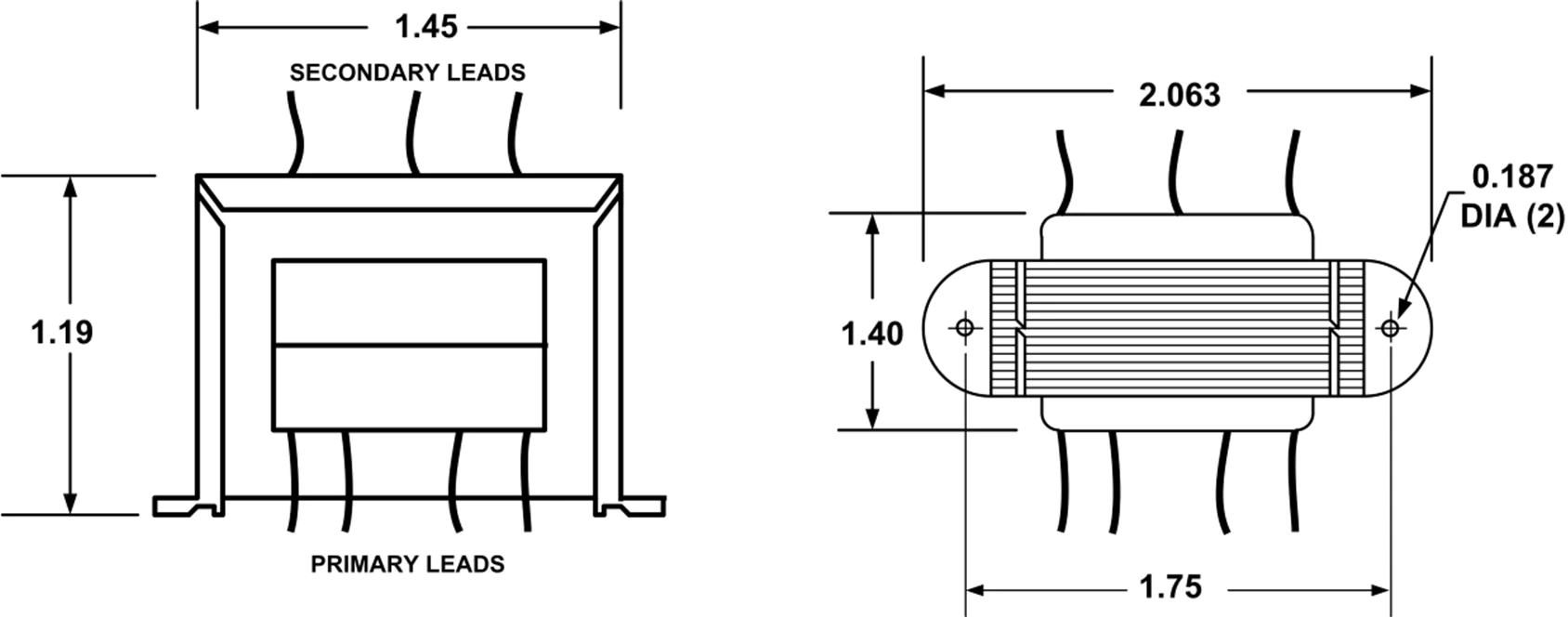

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||
|---|---|---|---|---|---|---|---|
| VA | Part Number | L | W | H | A | ML | Weight (lbs) |
| 2.4VA | PSL-24-10 | 2.063 | 1.40 | 1.19 | 1.45 | 1.75 | 0.25 |
Schematics
