Series: BVA
Part Number: BVA-12BD1.7
Description: DC Power Supply - Dual Output Linear Regulated, Voltage: ±12 to 15 Volts, 20VA, Input : 110/117/220/230-240VAC, Output 1 : 12V @ 1.7A, or 15V @ 1.5A, Output 2 : -12V @ 1.7A, or -15V @ 1.5A, or -5V @ 0.7A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications:
| Type- | Description, |
|---|---|
| VA Rating | 20VA, |
| Status | Active, |
| Input | 110/117/220/230-240VAC, |
| Output 1 | 12V @ 1.7A,or 15V @ 1.5A, |
| Output 2 | -12V @ 1.7A, or -15V @ 1.5A, or -5V @ 0.7A, |
| Case | BD, |
| Voltage | ±12 to 15 Volts, |
| Size/Dimension(L x W x H) | 7.00 x 4.87 x 2.95 Inch, |
| Weight (lbs) | 4.0, |
| UL Recognized | File # E181899, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4035, |

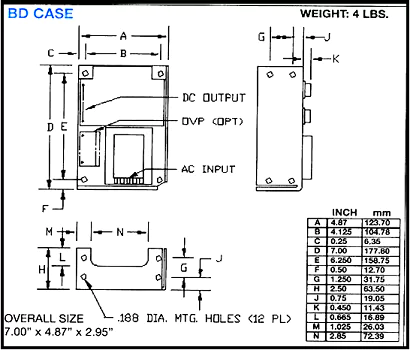

Mechanical Dimensions(inches)
| Dimension's in Inches | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | Case Size | A | B | C | D | E | F | G | H | J | K | L | M | N | Weight (lbs) |
| 20VA | BVA-12BD1.7 | BD | 4.87 | 4.125 | 0.25 | 7.00 | 6.250 | 0.50 | 1.250 | 2.50 | 0.75 | 0.450 | 0.665 | 1.025 | 2.85 | 4.0 |
Schematics
