Series: BVA
Part Number: BVA-512F12T3.4
Description: DC Power Supply - Triple Output Linear Regulated, Voltage: 60 Volts, 60VA, Input : 110/117/220/230-240VAC, Output 1 : 5V @ 12A, Output 2 : 12V @ 3.4A, or 15V @ 3A, Output 3 : -12V @ 3.4A, or -15V @ 3A
Standard Lead Time: 8 Weeks
Datasheet: View Datasheet
Specifications:
| Type- | Description, |
|---|---|
| VA Rating | 60VA, |
| Status | Active, |
| Input | 110/117/220/230-240VAC, |
| Output 1 | 5V @ 12A, |
| Output 2 | 12V @ 3.4A, or 15V @ 3A, |
| Output 3 | -12V @ 3.4A, or -15V @ 3A, |
| Case | FT, |
| Voltage | 60 Volts, |
| Size/Dimension(L x W x H) | 15.00 x 4.88 x 4.55 Inch, |
| Weight (lbs) | 12.0, |
| UL Recognized | File # E181899, |
Environmental & Export Classifications:
| Attribute- | Description, |
|---|---|
| RoHs | RoHs3 COMPLIANT, |
| REACH Status | REACH Uneffected, |
| ECCN | EAR99, |
| HTSUS | 8504.31.4065, |

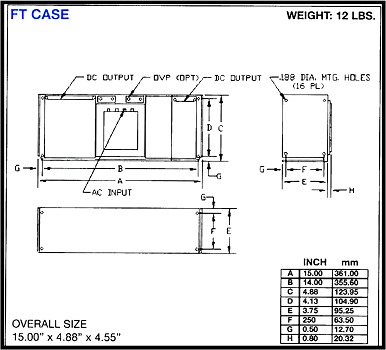

Mechanical Dimensions(inches)
| Dimension's in Inches | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VA | Part Number | Case Size | A | B | C | D | E | F | G | H | Weight (lbs) |
| 60VA | BVA-512F12T3.4 | FT | 15.00 | 14.00 | 4.88 | 4.13 | 3.75 | 2.50 | 0.50 | 0.80 | 12.0 |
Schematics
