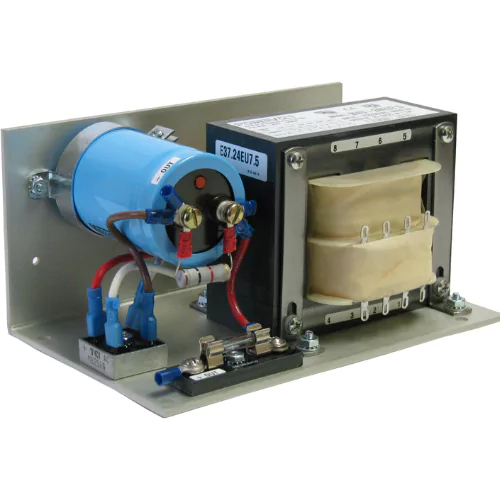

Generic Picture - Mounting Style

transformers transformers transformers
DC Power Supply
Unregulated (Open Frame)
Series: BVU
  • Low cost unregulated DC power supplies
  • Field selectable input taps
  • 103/115/126/207/230/253 VAC
  • Improved ripple -3% maximum
  • Fuse protected output
  • Computer grade capacitors
  • Floating output provides versatility for wiring
  • 2 year warranty

Agency Approval
  • UL 1950, Third Edition, File #E181899
  • CSA C22.2 No. 950, UL File #E181899
  • CE Marked
Specifications
  • AC Input: 115/230VAC, 50/60 Hz nominal. Field selectable taps for ±10%. High line tolerance on voltage is +10%
  • DC Output: Floating fixed output at full load ratings. transformer taps provided for approx. 10% output voltage adjustment
  • Ripple: 3% r.m.s. maximum at nominal line and full rated load
  • Operating Temperature: 0-50°C(Derate 2% per °C to 70°C)
  • Overload and Short Circuit Protection: Fused output. It should be noted that the fuse is not necessarily direct in line with the output. In most models the fuse is prior to the output capacitor and in case of a short circuit, the capacitor energy will be discharged into the load even if the fuse has opened.
Results: 44
Standard Parts:
Input
  • 103/115/126/207/230/253 V
VA Rating
  • 12
  • 13
  • 14
  • 15
  • 23
  • 25
  • 29
  • 30
  • 32
  • 45
  • 58
  • 59
  • 64
  • 85
  • 86
  • 89
  • 97
  • 102
  • 180
  • 188
  • 200
  • 206
  • 216
  • 270
  • 375
  • 484
  • 540
  • 720
  • 738
  • 750
  • 975
  • 88
  • 492
DC Output
  • 7.5V @ 1.8A
  • 7.5V @ 3A
  • 7.5V @ 6A
  • 8.5V @ 10A
  • 9V @ 20A
  • 11V @ 1.2A
  • 12V @ 2.4A
  • 12V @ 4.8A
  • 12.4V @ 15A
  • 12.5V @ 7A
  • 16V @ 1.8A
  • 16V @ 3.6A
  • 16.5V @ 12.5A
  • 17V @ 0.9A
  • 17V @ 6A
  • 19.48V @ 5A
  • 19.8V @ 0.75A
  • 19.8V @ 1.5A
  • 19.8V @ 3A
  • 20V @ 10A
  • 24.6V @ 20A
  • 24.6V @ 30A
  • 25V @ 0.6A
  • 25.5V @ 3.5A
  • 26.5V @ 1.2A
  • 26.5V @ 2.4A
  • 27.5V @ 7.5A
  • 45V @ 6.0A
  • 45V @ 12A
  • 47V @ 4A
  • 48V @ 0.3A
  • 48V @ 0.6A
  • 48V @ 1.2A
  • 48V @ 1.8A
  • 48V @ 15A
  • 48.4V @ 10A
  • 65V @ 15A
  • 72V @ 3A
  • 75V @ 5A
  • 75V @ 10A
  • 113V @ 0.12A
  • 120V @ 0.25A
  • 247V @ 0.05A
  • 248V @ 0.1A

Cannot Find Part Number, Please Click Here:

Results: 44
Compare Part Number Input VA Rating DC Output UL File No. RoHs Reach Datasheet Quanitity Available Check Price
BVU-7AU1.8 103/115/126/207/230/253 V 14 7.5V @ 1.8A E181899 Yes Yes View 0 Check Price
BVU-12AU1.2 103/115/126/207/230/253 V 13 11V @ 1.2A E181899 Yes Yes View 8 Check Price
BVU-16AU0.9 103/115/126/207/230/253 V 15 17V @ 0.9A E181899 Yes Yes View 0 Check Price
BVU-20AU0.75 103/115/126/207/230/253 V 15 19.8V @ 0.75A E181899 Yes Yes View 0 Check Price
BVU-24AU0.6 103/115/126/207/230/253 V 15 25V @ 0.6A E181899 Yes Yes View 7 Check Price
BVU-48AU0.3 103/115/126/207/230/253 V 14 48V @ 0.3A E181899 Yes Yes View 0 Check Price
BVU-120AU0.12 103/115/126/207/230/253 V 14 113V @ 0.12A E181899 Yes Yes View 0 Check Price
BVU-250AU0.05 103/115/126/207/230/253 V 12 247V @ 0.05A E181899 Yes Yes View 0 Check Price
BVU-7BU3 103/115/126/207/230/253 V 23 7.5V @ 3A E181899 Yes Yes View 0 Check Price
BVU-12BU2.4 103/115/126/207/230/253 V 29 12V @ 2.4A E181899 Yes Yes View 0 Check Price
BVU-16BU1.8 103/115/126/207/230/253 V 29 16V @ 1.8A E181899 Yes Yes View 0 Check Price
BVU-20BU1.5 103/115/126/207/230/253 V 30 19.8V @ 1.5A E181899 Yes Yes View 0 Check Price
BVU-24BU1.2 103/115/126/207/230/253 V 32 26.5V @ 1.2A E181899 Yes Yes View 0 Check Price
BVU-48BU0.6 103/115/126/207/230/253 V 29 48V @ 0.6A E181899 Yes Yes View 1 Check Price
BVU-120BU0.25 103/115/126/207/230/253 V 30 120V @ 0.25A E181899 Yes Yes View 0 Check Price
BVU-250BU0.1 103/115/126/207/230/253 V 25 248V @ 0.1A E181899 Yes Yes View 0 Check Price
BVU-7CU6 103/115/126/207/230/253 V 45 7.5V @ 6A E181899 Yes Yes View 0 Check Price
BVU-12CU4.8 103/115/126/207/230/253 V 58 12V @ 4.8A E181899 Yes Yes View 0 Check Price
BVU-16CU3.6 103/115/126/207/230/253 V 58 16V @ 3.6A E181899 Yes Yes View 0 Check Price
BVU-20CU3 103/115/126/207/230/253 V 59 19.8V @ 3A E181899 Yes Yes View 0 Check Price
BVU-24CU2.4 103/115/126/207/230/253 V 64 26.5V @ 2.4A E181899 Yes Yes View 0 Check Price
BVU-48CU1.2 103/115/126/207/230/253 V 58 48V @ 1.2A E181899 Yes Yes View 0 Check Price
BVU-7DU10 103/115/126/207/230/253 V 85 8.5V @ 10A E181899 Yes Yes View 0 Check Price
BVU-12DU7 103/115/126/207/230/253 V 88 12.5V @ 7A E181899 Yes Yes View 0 Check Price
BVU-16DU6 103/115/126/207/230/253 V 102 17V @ 6A E181899 Yes Yes View 0 Check Price
BVU-20DU5 103/115/126/207/230/253 V 97 19.48V @ 5A E181899 Yes Yes View 0 Check Price
BVU-24DU3.5 103/115/126/207/230/253 V 89 25.5V @ 3.5A E181899 Yes Yes View 0 Check Price
BVU-48DU1.8 103/115/126/207/230/253 V 86 48V @ 1.2A E181899 Yes Yes View 0 Check Price
BVU-7EU20 103/115/126/207/230/253 V 180 9V @ 20A E181899 Yes Yes View 0 Check Price
BVU-12EU15 103/115/126/207/230/253 V 188 12.4V @ 15A E181899 Yes Yes View 0 Check Price
BVU-16EU12.5 103/115/126/207/230/253 V 206 16.5V @ 12.5A E181899 Yes Yes View 0 Check Price
BVU-20EU10 103/115/126/207/230/253 V 200 20V @ 10A E181899 Yes Yes View 0 Check Price
BVU-24EU7.5 103/115/126/207/230/253 V 206 27.5V @ 7.5A E181899 Yes Yes View 0 Check Price
BVU-45EU6 103/115/126/207/230/253 V 270 45V @ 6.0A E181899 Yes Yes View 0 Check Price
BVU-48EU4 103/115/126/207/230/253 V 188 47V @ 4A E181899 Yes Yes View 0 Check Price
BVU-72EU3 103/115/126/207/230/253 V 216 72V @ 3A E181899 Yes Yes View 0 Check Price
BVU-24FU20 103/115/126/207/230/253 V 492 24.6V @ 20A E181899 Yes Yes View 0 Check Price
BVU-45FU12 103/115/126/207/230/253 V 540 45V @ 12A E181899 Yes Yes View 2 Check Price
BVU-48FU10 103/115/126/207/230/253 V 484 48.4V @ 10A E181899 Yes Yes View 1 Check Price
BVU-75FU5 103/115/126/207/230/253 V 375 75V @ 5A E181899 Yes Yes View 0 Check Price
BVU-24GU30 103/115/126/207/230/253 V 738 24.6V @ 30A E181899 Yes Yes View 0 Check Price
BVU-48GU15 103/115/126/207/230/253 V 720 48V @ 15A E181899 Yes Yes View 0 Check Price
BVU-65GU15 103/115/126/207/230/253 V 975 65V @ 15A E181899 Yes Yes View 1 Check Price
BVU-75GU10 103/115/126/207/230/253 V 750 75V @ 10A E181899 Yes Yes View 0 Check Price
1 - 44 of 44
