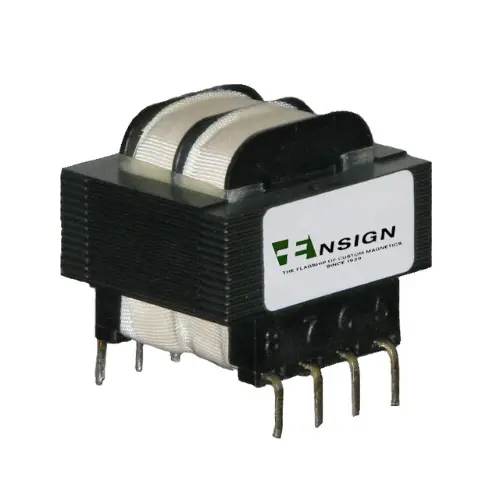

Printed Circuit Mount - Standard Profile
Printed Circuit Mount
Series: Captain Class (P)
  • Flame Retardant, UL 94V0 Rating
  • High Efficiency
  • Power Rating: 1.1VA or 2.4VA
  • Primary Voltage: 115, 115/230 or 230 V
  • Frequency: 50/60Hz (Economy 60Hz-only Models Available)
  • Secondary Voltage - 5V to 24V
  • Insulation Material 130°C Standard (Optional 200°C)
  • High Isolation - 2500Vrms
  • Low Capacitive Coupling, no Electrostatic Shield Needed

Agency Approval
  • UL/cUL 5086-3 Class 2 Recognized (File E49606)

  • UL 1446 Recognized Insulation system (File E95662)
  • UL/cUL 5083-3 Class 2 Recognized (File E43609)
Results: 27
Standard Parts:
VA Rating
  • 1.1
  • 2.4
Primary Voltage
  • 115V
  • 115/230V
  • 230V
Secondary Voltage
  • 10V @ 0.11A
  • 10V 2 0.25A
  • 12.6V @ 0.09A
  • 12.6V @ 0.2A
  • 16V @ 0.07A
  • 16V @ 0.15A
  • 20V @ 0.055A
  • 20V @ 0.12A
  • 24V @ 0.1A

Cannot Find Part Number, Please Click Here:

Results: 27
Compare Part Number VA Rating Primary Voltage Secondary Voltage UL File No. RoHs Reach Datasheet Quanitity Available Check Price
P001-1-710X 1.1 115V 10V @ 0.11A File E47299 Yes Yes View 0 Check Price
P001-1-712X 1.1 115V 12.6V @ 0.09A File E47299 Yes Yes View 0 Check Price
P001-1-716X 1.1 115V 16V @ 0.07A File E47299 Yes Yes View 0 Check Price
P001-1-720X 1.1 115V 20V @ 0.055A File E47299 Yes Yes View 0 Check Price
P002-1-710X 2.4 115V 10V 2 0.25A File E47299 Yes Yes View 0 Check Price
P002-1-712X 2.4 115V 12.6V @ 0.2A File E47299 Yes Yes View 0 Check Price
P002-1-716X 2.4 115V 16V @ 0.15A File E47299 Yes Yes View 0 Check Price
P002-1-720X 2.4 115V 20V @ 0.12A File E47299 Yes Yes View 0 Check Price
P002-1-724X 2.4 115V 24V @ 0.1A File E47299 Yes Yes View 0 Check Price
P001-2-710X 1.1 115/230V 10V @ 0.11A File E47299 Yes Yes View 0 Check Price
P001-2-712X 1.1 115/230V 12.6V @ 0.09A File E47299 Yes Yes View 0 Check Price
P001-2-716X 1.1 115/230V 16V @ 0.07A File E47299 Yes Yes View 0 Check Price
P001-2-720X 1.1 115/230V 20V @ 0.055A File E47299 Yes Yes View 0 Check Price
P002-2-710X 2.4 115/230V 10V 2 0.25A File E47299 Yes Yes View 0 Check Price
P002-2-712X 2.4 115/230V 12.6V @ 0.2A File E47299 Yes Yes View 0 Check Price
P002-2-716X 2.4 115/230V 16V @ 0.15A File E47299 Yes Yes View 0 Check Price
P002-2-720X 2.4 115/230V 20V @ 0.12A File E47299 Yes Yes View 0 Check Price
P002-2-724X 2.4 115/230V 24V @ 0.1A File E47299 Yes Yes View 0 Check Price
P001-3-710X 1.1 230V 10V @ 0.11A File E47299 Yes Yes View 0 Check Price
P001-3-712X 1.1 230V 12.6V @ 0.09A File E47299 Yes Yes View 0 Check Price
P001-3-716X 1.1 230V 16V @ 0.07A File E47299 Yes Yes View 0 Check Price
P001-3-720X 1.1 230V 20V @ 0.055A File E47299 Yes Yes View 0 Check Price
P002-3-710X 2.4 230V 10V 2 0.25A File E47299 Yes Yes View 0 Check Price
P002-3-712X 2.4 230V 12.6V @ 0.2A File E47299 Yes Yes View 0 Check Price
P002-3-716X 2.4 230V 16V @ 0.15A File E47299 Yes Yes View 0 Check Price
P002-3-720X 2.4 230V 20V @ 0.12A File E47299 Yes Yes View 0 Check Price
P002-3-724X 2.4 230V 24V @ 0.1A File E47299 Yes Yes View 0 Check Price
1 - 27 of 27
