transformers

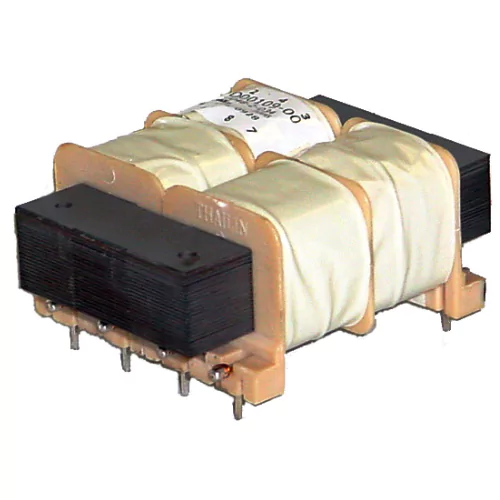

Generic Picture - Mounting Style

transformers
Printed Circuit Mount - Low Profile
Printed Circuit Mount - High Performance
Series: Navigator Class (U)
  • High Efficiency
  • Flame Retardant - UL 94V0 Rating
  • Power Rating: 2.5VA - 48VA
  • Primary Voltage: 115/230 V
  • Frequency: 50/60Hz
  • Secondary Voltage: 5 - 230V
  • Class B Insulation - 130°C
  • High Isolation - 2500Vrms

Agency Approval
  • UL/cUL 5085-2 Recognized (File E47299)
  • UL 1446 Recognized Insulation System (File E95662)
Results: 60
Standard Parts:
VA Rating
  • 2.5
  • 6
  • 12
  • 24
  • 48
Primary Voltage
  • 115/230V
Secondary Series
  • 10VCT @ 250mA
  • 10VCT @ 600mA
  • 10VCT @ 1.20A
  • 10VCT @ 2.40A
  • 10VCT @ 4.80A
  • 12.6VCT @ 200mA
  • 12.6VCT @ 450mA
  • 12.6VCT @ 900mA
  • 12.6VCT @ 1.90A
  • 12.6VCT @ 3.80A
  • 16VCT @ 150mA
  • 16VCT @ 350mA
  • 16VCT @ 700mA
  • 16VCT @ 1.50A
  • 16VCT @ 3.00A
  • 20VCT @ 125mA
  • 20VCT @ 300mA
  • 20VCT @ 600mA
  • 20VCT @ 1.20A
  • 20VCT @ 2.40A
  • 24VCT @ 100mA
  • 24VCT @ 250mA
  • 24VCT @ 500mA
  • 24VCT @ 1.00A
  • 24VCT @ 2.00A
  • 30VCT @ 85mA
  • 30VCT @ 200mA
  • 30VCT @ 400mA
  • 30VCT @ 800mA
  • 30VCT @ 1.60A
  • 34VCT @ 75mA
  • 34VCT @ 170mA
  • 34VCT @ 340mA
  • 34VCT @ 700mA
  • 34VCT @ 1.40A
  • 40VCT @ 60mA
  • 40VCT @ 150mA
  • 40VCT @ 300mA
  • 40VCT @ 600mA
  • 40VCT @ 1.20A
  • 56VCT @ 45mA
  • 56VCT @ 100mA
  • 56VCT @ 200mA
  • 56VCT @ 425mA
  • 56VCT @ 850mA
  • 88VCT @ 28mA
  • 88VCT @ 65mA
  • 88VCT @ 130mA
  • 88VCT @ 275mA
  • 88VCT @ 550mA
  • 120VCT @ 20mA
  • 120VCT @ 50mA
  • 120VCT @ 100mA
  • 120VCT @ 200mA
  • 120VCT @ 400mA
  • 230VCT @ 10mA
  • 230VCT @ 25mA
  • 230VCT @ 50mA
  • 230VCT @ 100mA
  • 230VCT @ 200mA
Secondary Parallel
  • 5V @ 500mA
  • 5V @ 1.20A
  • 5V @ 2.40A
  • 5V @ 4.80A
  • 5V @ 9.60A
  • 6.3V @ 400mA
  • 6.3V @ 900mA
  • 6.3V @ 1.80A
  • 6.3V @ 3.80A
  • 6.3V @ 7.60A
  • 8V @ 300mA
  • 8V @ 700mA
  • 8V @ 1.40A
  • 8V @ 3.00A
  • 8V @ 6.00A
  • 10V @ 250mA
  • 10V @ 600mA
  • 10V @ 1.20A
  • 10V @ 2.40A
  • 10V @ 4.80A
  • 12V @ 200mA
  • 12V @ 500mA
  • 12V @ 1.00A
  • 12V @ 2.00A
  • 12V @ 4.00A
  • 15V @ 170mA
  • 15V @ 400mA
  • 15V @ 800mA
  • 15V @ 1.60A
  • 15V @ 3.20A
  • 17V @ 150mA
  • 17V @ 340mA
  • 17V @ 680mA
  • 17V @ 1.40A
  • 17V @ 2.80A
  • 20V @ 120mA
  • 20V @ 300mA
  • 20V @ 600mA
  • 20V @ 1.20A
  • 20V @ 2.40A
  • 28V @ 90mA
  • 28V @ 200mA
  • 28V @ 400mA
  • 28V @ 850mA
  • 28V @ 1.70A
  • 44V @ 56mA
  • 44V @ 130mA
  • 44V @ 260mA
  • 44V @ 550mA
  • 44V @ 1.10A
  • 60V @ 40mA
  • 60V @ 100mA
  • 60V @ 200mA
  • 60V @ 400mA
  • 60V @ 800mA
  • 115V @ 20mA
  • 115V @ 50mA
  • 115V @ 100mA
  • 115V @ 200mA
  • 115V @ 400mA

Cannot Find Part Number, Please Click Here:

Results: 60
Compare Part Number VA Rating Primary Voltage Secondary Series Secondary Parallel UL File No. RoHs Reach Datasheet Quanitity Available Check Price
U002-2-010 2.5 115/230V 10VCT @ 250mA 5V @ 500mA E47299 Yes Yes View 4 Check Price
U002-2-012 2.5 115/230V 12.6VCT @ 200mA 6.3V @ 400mA E47299 Yes Yes View 0 Check Price
U002-2-016 2.5 115/230V 16VCT @ 150mA 8V @ 300mA E47299 Yes Yes View 0 Check Price
U002-2-020 2.5 115/230V 20VCT @ 125mA 10V @ 250mA E47299 Yes Yes View 4 Check Price
U002-2-024 2.5 115/230V 24VCT @ 100mA 12V @ 200mA E47299 Yes Yes View 0 Check Price
U002-2-030 2.5 115/230V 30VCT @ 85mA 15V @ 170mA E47299 Yes Yes View 0 Check Price
U002-2-034 2.5 115/230V 34VCT @ 75mA 17V @ 150mA E47299 Yes Yes View 0 Check Price
U002-2-040 2.5 115/230V 40VCT @ 60mA 20V @ 120mA E47299 Yes Yes View 0 Check Price
U002-2-056 2.5 115/230V 56VCT @ 45mA 28V @ 90mA E47299 Yes Yes View 0 Check Price
U002-2-088 2.5 115/230V 88VCT @ 28mA 44V @ 56mA E47299 Yes Yes View 0 Check Price
U002-2-120 2.5 115/230V 120VCT @ 20mA 60V @ 40mA E47299 Yes Yes View 0 Check Price
U002-2-230 2.5 115/230V 230VCT @ 10mA 115V @ 20mA E47299 Yes Yes View 0 Check Price
U006-2-010 6 115/230V 10VCT @ 600mA 5V @ 1.20A E47299 Yes Yes View 0 Check Price
U006-2-012 6 115/230V 12.6VCT @ 450mA 6.3V @ 900mA E47299 Yes Yes View 0 Check Price
U006-2-016 6 115/230V 16VCT @ 350mA 8V @ 700mA E47299 Yes Yes View 0 Check Price
U006-2-020 6 115/230V 20VCT @ 300mA 10V @ 600mA E47299 Yes Yes View 0 Check Price
U006-2-024 6 115/230V 24VCT @ 250mA 12V @ 500mA E47299 Yes Yes View 3988 Check Price
U006-2-030 6 115/230V 30VCT @ 200mA 15V @ 400mA E47299 Yes Yes View 0 Check Price
U006-2-034 6 115/230V 34VCT @ 170mA 17V @ 340mA E47299 Yes Yes View 0 Check Price
U006-2-040 6 115/230V 40VCT @ 150mA 20V @ 300mA E47299 Yes Yes View 0 Check Price
U006-2-056 6 115/230V 56VCT @ 100mA 28V @ 200mA E47299 Yes Yes View 3 Check Price
U006-2-088 6 115/230V 88VCT @ 65mA 44V @ 130mA E47299 Yes Yes View 0 Check Price
U006-2-120 6 115/230V 120VCT @ 50mA 60V @ 100mA E47299 Yes Yes View 0 Check Price
U006-2-230 6 115/230V 230VCT @ 25mA 115V @ 50mA E47299 Yes Yes View 0 Check Price
U012-2-010 12 115/230V 10VCT @ 1.20A 5V @ 2.40A E47299 Yes Yes View 0 Check Price
U012-2-012 12 115/230V 12.6VCT @ 900mA 6.3V @ 1.80A E47299 Yes Yes View 0 Check Price
U012-2-016 12 115/230V 16VCT @ 700mA 8V @ 1.40A E47299 Yes Yes View 0 Check Price
U012-2-020 12 115/230V 20VCT @ 600mA 10V @ 1.20A E47299 Yes Yes View 0 Check Price
U012-2-024 12 115/230V 24VCT @ 500mA 12V @ 1.00A E47299 Yes Yes View 0 Check Price
U012-2-030 12 115/230V 30VCT @ 400mA 15V @ 800mA E47299 Yes Yes View 0 Check Price
U012-2-034 12 115/230V 34VCT @ 340mA 17V @ 680mA E47299 Yes Yes View 0 Check Price
U012-2-040 12 115/230V 40VCT @ 300mA 20V @ 600mA E47299 Yes Yes View 0 Check Price
U012-2-056 12 115/230V 56VCT @ 200mA 28V @ 400mA E47299 Yes Yes View 0 Check Price
U012-2-088 12 115/230V 88VCT @ 130mA 44V @ 260mA E47299 Yes Yes View 0 Check Price
U012-2-120 12 115/230V 120VCT @ 100mA 60V @ 200mA E47299 Yes Yes View 0 Check Price
U012-2-230 12 115/230V 230VCT @ 50mA 115V @ 100mA E47299 Yes Yes View 0 Check Price
U024-2-010 24 115/230V 10VCT @ 2.40A 5V @ 4.80A E47299 Yes Yes View 0 Check Price
U024-2-012 24 115/230V 12.6VCT @ 900mA 6.3V @ 1.80A E47299 Yes Yes View 0 Check Price
U024-2-016 24 115/230V 16VCT @ 150mA 8V @ 3.00A E47299 Yes Yes View 0 Check Price
U024-2-020 24 115/230V 20VCT @ 1.20A 10V @ 2.40A E47299 Yes Yes View 0 Check Price
U024-2-024 24 115/230V 24VCT @ 1.00A 12V @ 2.00A E47299 Yes Yes View 0 Check Price
U024-2-030 24 115/230V 30VCT @ 800mA 15V @ 1.60A E47299 Yes Yes View 0 Check Price
U024-2-034 24 115/230V 34VCT @ 700mA 17V @ 1.40A E47299 Yes Yes View 0 Check Price
U024-2-040 24 115/230V 40VCT @ 600mA 20V @ 1.20A E47299 Yes Yes View 0 Check Price
U024-2-056 24 115/230V 56VCT @ 425mA 28V @ 850mA E47299 Yes Yes View 0 Check Price
U024-2-088 24 115/230V 88VCT @ 275mA 44V @ 550mA E47299 Yes Yes View 0 Check Price
U024-2-120 24 115/230V 120VCT @ 200mA 60V @ 400mA E47299 Yes Yes View 0 Check Price
U024-2-230 24 115/230V 230VCT @ 100mA 115V @ 200mA E47299 Yes Yes View 0 Check Price
U048-2-010 48 115/230V 10VCT @ 4.80A 5V @ 9.60A E47299 Yes Yes View 0 Check Price
U048-2-012 48 115/230V 12.6VCT @ 3.80A 6.3V @ 7.60A E47299 Yes Yes View 0 Check Price
1 - 50 of 60
