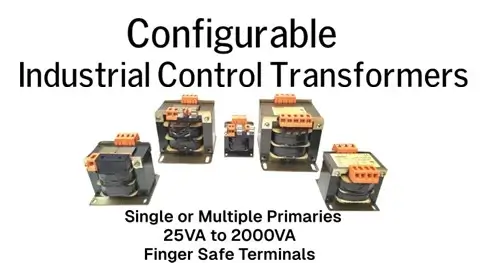

Industrial Control Transformers

Generic Picture

Explore All

Powervolt Inc
Standard
Series: GP

• 25VA-2000VA
• International input/output voltages
• Frequency - 50/60 Hz
• High inrush current capability
• Voltage regulation exceeds NEMA ST-1
• IEC Touch proof terminals
• UL/cUL 5085-2 Listed, UL File E47299
• 10 year warranty

Generic Picture

Explore All

Powervolt Inc
Econoline
Series: GP

• 300VA - 1500 VA
• International input/output voltages
• Frequency - 50/60 Hz
• Voltage regulation exceeds NEMA ST-1
• IEC Touch proof terminals
• UL/cUL 5085-2 Listed, UL File E47299
• 10 year warranty

Generic Picture

Explore All

Powervolt Inc
Enclosed Control Transformers
Series: GP

• 250VA-2000 VA
• Primary: 208 - 600 V
• Frequency - 50/60 or 60 Hz
• Secondary: 120/240 V
• NEMA 3R nonventilated weatherproof enclosure
• UL Listed Class 5085-2 (File E47299)

Class 2 Transformers

Generic Picture

Explore All

Wabash Transformer

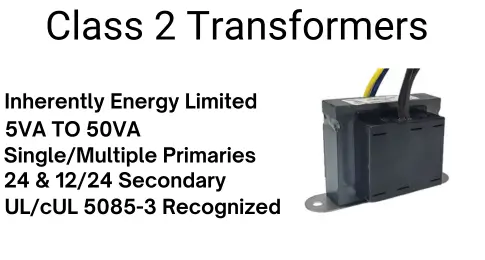

Inherently Limited
Series: CL

• 5VA - 50VA
• No Secondary Fusing Required
• Input: Multi Voltage Combination
• Output: 24 or 12/24 V
• Frequency: 50/60Hz
• UL/cUL 5085-3 Class 2 Recognized (File E49606)

Generic Picture

Explore All

Wabash Transformer

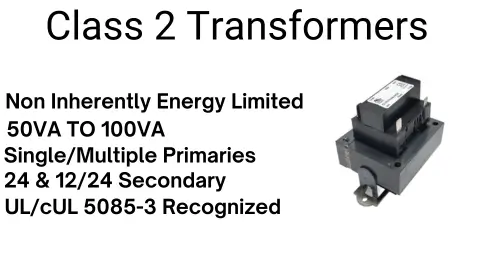

Non-Inherently Limited
Series: CL

• 50VA - 100VA
• Secondary Fusing Required
• Input: Multi Voltage Combination
• Output: 24 or 12/24 V
• Frequency: 50/60 Hz
• UL/cUL 5085-3 Class 2 Recognized (File E49606)

Printed Circuit Mount - Standard Profile

Generic Picture

Explore All

Powervolt Inc
Printed Circuit Mount
Econoline - Series: SZ/DSZ

• 1.1VA - 36VA
• Input: 115 OR 115/230 V, 50/60 Hz
• Output: 5 - 120 V
• High Isolation - 2500Vrms
• Insulation Class B (130° C)
• UL/cUL 5085-2 Recognized (E47299)

Generic Picture

Explore All

Ensign Corp.
Printed Circuit Mount

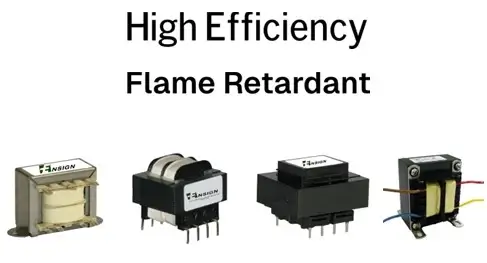

High Performance - Captain Class

• High Efficiency
• Flame Retardant - UL 94V0 Rating
• 1.1VA - 36VA
• Input: 115, 115/230 or 230V, 50/60 Hz
• Output: 5 - 120 V
• High Isolation - 2500Vrms
• Insulation Class B (130° C)
• UL/cUL 5085-2 Recognized (E47299)

Generic Picture

Explore All

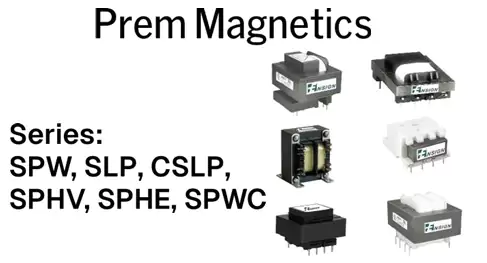

Prem Magnetics
Printed Circuit Mount
Series: SPW-S&D

• 1.1VA - 36VA
• Input: 115 or 115/230 V, 60 Hz
• Output: 5 - 120 V
• High Isolation - 2500Vrms
• Insulation Class B (130° C)
• UL 5085-2 General Purpose recognized (E47299)

Generic Picture

Explore All

Prem Magnetics
Printed Circuit Mount
24V Input - Series: SLP

• 1.1VA - 12VA
• Input: 24 V, 60 Hz
• Output: 5 - 28 V
• High Isolation - 2500 Vrms
• Insulation Class B (130° C)
• UL/cUL 5085-2 General Purpose construction

Generic Picture

Explore All

Powervolt Inc
Printed Circuit Mount
Small Size - Series: MT/DMT

• 1.0VA - 24VA
• Input: 115, 115/230 V, 50/60 Hz
• Output: 5 - 120 V
• Hipot - 1500 Vrms
• Insulation Class B (130° C)
• UL/cUL 5085-2 Recognized (File E47299)

Generic Picture

Explore All

Ensign Corp.
Printed Circuit Mount
Series: Captain Class

• High Efficiency
• Flame Retardant - UL 94V0 Rating
• 1.1VA or 2.4VA
• Input: 115, 115/230, 230V
• Output: 5 - 24 V
• UL/cUL 5086-3 Class 2 Recognized (File E49606)

Printed Circuit Mount - Low Profile

Generic Picture

Explore All

Powervolt Inc
Printed Circuit Mount
Econoline - Series: FZ

• 2VA - 48VA
• Input: 115/230V
• Output: 5 - 230V
• Hipot - 1500 Vrms
• Class B insulation - 130°C
• UL/cUL 5085-2 Recognized (File E47299)

Generic Picture

Explore All

Ensign Corp.
Printed Circuit Mount
High Performance - Navigator Class

• High Efficiency
• Flame Retardant - UL 94V0 Rating
• 2.5VA - 48VA
• Input: 115/230V
• Output: 5 - 230V
• High Isolation - 2500 Vrms
• UL/cUL 5085-2 Recognized (File E47299)

Generic Picture

Explore All

Prem Magnetics
Printed Circuit Mount
US Domestic - Series: SPW-050

• 2.5VA - 12VA
• Input: 115/230 V, 60Hz
• Output: 5 - 230 V
• Hipot - 1500 Vrms
• UL 5085-2 General Purpose recognized (E47299)

Generic Picture

Explore All

Prem Magnetics
Printed Circuit Mount
24V Input - Series: SLP-24-050

• 2.5VA - 12.0VA
• Input: 24/48V, 60Hz
• Output: 10 - 30 V
• Hipot - 1500 Vrms
• UL/cUL 5085-2 General Purpose construction

Chassis Mount - Quick Connect

Generic Picture

Explore All

Powervolt Inc
Quick Connect
Econoline - Series: PP/DPP

• 2.4VA - 100VA
• Input: 115, 115/230 V
• Output: 10 - 120 V
• High Isolation - 2500 Vrms
• UL/cUL 5085-2 Recognized (File E47299)

Generic Picture

Explore All

Ensign Corp.
Quick Connect
High Performance - Commodore Class

• High Efficiency
• Flame Retardant - UL 94V0 Rating
• 2.4VA - 100VA
• Input: 115, 115/230, 230V
• Output: 10 - 120V
• High Isolation - 2500 Vrms
• UL/cUL 5085-2 Recognized (File E47299)

Generic Picture

Explore All

Prem Magnetics
Quick Connect
24V Input - Series: CSLP

• 2.4VA - 12VA
• Input: 24 V, 60Hz
• Output: 10 - 28 V
• High Isolation - 2500 Vrms
• UL/cUL 5085-2 Compliant General Purpose construction

Chassis Mount - Lead Wires

Generic Picture

Explore All

Wabash Transformer
Lead Wires
Econoline - Series: PSL/PDL

• 1.2VA - 100VA
• Input: 115, 115/230 V
• Output: 10 - 120 V
• High Isolation - 2500 Vrms
• UL/cUL 5085-2 Recognized (File E47299)

Generic Picture

Explore All

Ensign Corp.
Lead Wires
High Performance - Commander Class

• High Efficiency
• Flame Retardant - UL 94V0 Rating
• 2.4 - 100 VA
• Input: 115, 115/230, 230V
• Output: 5 - 120V
• High Isolation - 2500 Vrms
• UL/cUL 5085-2 Recognized (File E47299)

Generic Picture

Explore All

Prem Magnetics
Lead Wires
General Purpose - Series: SPWC

• 40VA - 60VA
• Input: 120/208/240/277 V, 60Hz
• Output: 24 V
• High Isolation - 2500 Vrms
• UL 5085-2 & CSA C22.2 #66

International Series Printed Circuit Mount - Standard Profile

Generic Picture

Explore All

Ensign Corp.
Printed Circuit Mount
High Performance - Admiral Class

• High Efficiency
• Flame Retardant - UL 94V0 Rating
• 2.5 - 56VA
• Input: 115, 115/230, 230V
• Output: 5 - 36 V
• High Isolation - 4000Vrms
• UL/cUL 5085-2 Recognized(File E47299)

Generic Picture

Explore All

Prem Magnetics
Printed Circuit Mount
Shrouded Primary - Series: SPW-1000

• Flame Retardant - UL 94V0 Rating
• 2.5VA - 20VA
• Input: 115/230 V, 50/60 Hz
• Output: 5 - 36 V
• High Isolation - 4500Vrms
• UL 5085-3 Class 2 or Class 3 for U.S. & Canada (File E49606) or CSA File 063944

Generic Picture

Explore All

Prem Magnetics
Printed Circuit Mount
277V Input - Series: SPHV

• 2.5VA - 20VA
• Input: 277 V, 50/60 Hz
• Output: 10 - 120 V
• High Isolation - 4000 Vrms
• UL 1446 Class B (130°C) Insulation System, File E95662

International Series Printed Circuit Mount - Low Profile

Generic Picture

Explore All

Prem Magnetics
Printed Circuit Mount
Econoline - Series: SPW-3050

• Flame Retardant - UL 94V0 Rating
• 2.5VA - 9.0VA
• Input: 115/230 V, 50/60 Hz
• Output: 10 - 230 V
• High Isolation - 4000 Vrms
• UL 5085-3 Class 2 or Class 3 for U.S. & Canada, File E49606

Generic Picture

Explore All

Prem Magnetics
Printed Circuit Mount
Series: SPW

• Flame Retardant - UL 94V0 Rating
• 6.0VA - 24VA
• Input: 115/230 V, 50/60 Hz
• Output: 10 - 230 V
• High Isolation - 4000 Vrms
• UL 5085-3 Class 2 or Class 3 for U.S. & Canada, File E49606

International Series Chassis Mount - Quick Connect

Generic Picture

Explore All

Ensign Corp.
Quick Connect
High Performance - Admiral Class

• High Efficiency
• Flame Retardant - UL 94V0 Rating
• 25VA - 175VA
• Input: 115, 115/230, 230V
• Output: 10 - 230V
• High Isolation - 4000 Vrms
• UL/cUL 5085-2 Recognized (File E47299)

Generic Picture

Explore All

Prem Magnetics
Quick Connect
Series: SPWC

• 6.0VA - 130VA
• Input: 115/230 V, 50/60 Hz
• Output: 10 - 230 V
• High Isolation - 4000 Vrms
• UL/cUL 5085-2 and/or -3, 60601-1, 62638 and EN/IEC 61558 compliant construction

International Series Chassis Mount - Lead Wires

Generic Picture

Explore All

Ensign Corp.
Lead Wires - Panel Mount
Series: Admiral Class (IL)

• High Efficiency
• Flame Retardant - UL 94V0 Rating
• 2.5VA - 56VA
• Input: 115, 115/230, 230V
• Output: 5 - 36V
• High Isolation - 4000 Vrms
• UL/cUL 5085-2 Recognized (File E47299)

Generic Picture

Explore All

Ensign Corp.
Lead Wires - Chassis Mount
Series: Admiral Class(IL)

• High Efficiency
• Flame Retardant - UL 94V0 Rating
• 25VA - 175VA
• Input: 115, 115/230, 230V
• Output: 5 - 36V
• High Isolation - 4000 Vrms
• UL/cUL 5085-2 Recognized (File E47299)

Isolation Transformers

Generic Picture

Explore All

Wabash Transformer
Printed Circuit Mount
6 Pins - Series: P24H

• 1.1VA - 36VA
• Input: 24 V
• Output: 24 VCT
• High Isolation - 2500 Vrms
• UL/cUL 5085-2 Recognized (File E47299)

Generic Picture

Explore All

Wabash Transformer
Printed Circuit Mount
12 Pins - Series: P24X

• 2.4VA - 30 VA
• Input: 24 V
• Output: 24 VCT
• Hipot - 1500 Vrms
• UL/cUL 5085-2 Recognized (File E47299)

Generic Picture

Explore All

Wabash Transformer
Chassis Mount
Quick Connect - Series: P24T

• 2.4VA - 100VA
• Input: 24 V
• Output: 24 VCT
• High Isolation - 2500 Vrms
• UL/cUL 5085-2 Recognized (File E47299)

Generic Picture

Explore All

Wabash Transformer
Chassis Mount
Lead Wires - Series: P24L

• 2.4VA - 100VA
• Input: 24 V
• Output: 24 VCT
• High Isolation - 2500 Vrms
• UL/cUL 5085-2 Recognized (File E47299)

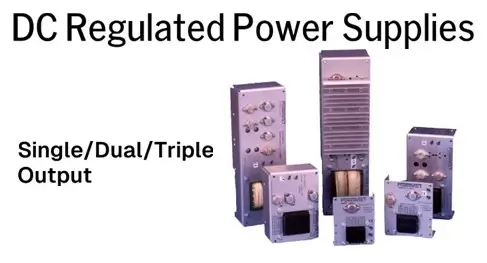

DC Power Supply

Generic Picture

Explore All

Powervolt Inc
Linear Regulated
Series: BVA

• Single, dual, triple outputs
• Input: 100 - 480 VAC, field selectable
• Overload and short circuit protection
• Remote sense
• UL File #E181899
• 2 Year warranty

Generic Picture

Explore All

Powervolt Inc
Unregulated (Open Frame)
Series: BVU

• Input: 115/230 VAC, 50/60 Hz
• Floating output at full load ratings
• Overload and Short Circuit Protection - Fused Output
• UL File #E181899
• 2 Year warranty

Generic Picture

Explore All

Powervolt Inc
StepperPower
Series: STP

• Input: 120/240 VAC, switch selectable
• Up to 500 watts regulated output
• Logic Power: 5VDC ±5% @ 500 mA
• UL File #E181899
• 2 Year warranty

Special Products

Generic Picture

Explore All

Powervolt Inc
Three Phase Open Frame
Series: BVZ

• AC Input: 430/460/480 /500/530 V
• DC Output: 24 VDC
• Ripple: 5%rms maximum at nominal line and full load
• Overload and Short Circuit Protection - Fused Output

Generic Picture

Explore All

Ensign Corp.
Toroid Transformers

• Contact Factory for more detail.

Generic Picture

Explore All

Ensign Corp.
High Frequency Transformers

• Contact Factory for more detail.
